Application Scenarios
1. Power Supply for Portable Monitors:
Some portable monitors only feature a DVI video input but require an additional DC power supply. This adapter cable can transmit video signals while providing power to the screen from the same device (e.g., a computer or power adapter), reducing the number of cables needed.

2. Industrial / Embedded Device Connections:
In embedded scenarios such as industrial all-in-one PCs and thin clients, the DVI interface of the device is often integrated with a power output. Using this harness simplifies wiring by sharing a single link for both video and power.

3. DIY and Modification Projects:
Ideal for users modifying the power supply of monitors, small projectors, and other devices, it enables power drawing via the DVI interface for an integrated connection.

4. Compatibility with Specific Graphics Cards / Docking Stations:
The DVI interfaces of certain professional graphics cards or docking stations integrate power output pins, allowing direct power supply to low-power peripherals. This harness is designed to match such special configurations.

Specifications
1. Cable： #26x1c+spiral+jacket: PVC, O.D=?2.5+/-0.1mm, UL1185, color: black.

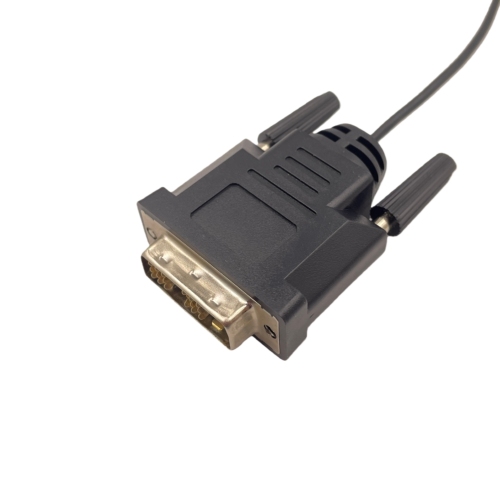

2. Connector 1 : DVI 18+1P male connector：Contact: gold flash, insulator color: white, shell: nickel plated.

3. Connector 2: ?3.5x1.35mm DC power plug: Contact: nickel plated, insulator color: black, shell: nickel plated.

4. Mounting screw：#4-40UNC-2A, UL94V-0, color: black.

5. Outer molded：PVC, UL94V-0, color: black.

6. Length customized.
