USB A Male to RJ-69 10P10C plug
Get Latest Price
You might also like
Basic Info
| Brand Name | CHAMAX or customized |
|---|
Product description
CHAMAX can customize USB cable assemblies, OEM Custom USB cables, USB 3.2 cable assemblies, USB 2.0 cables, USB 5Gbps cables, USB Hi speed cable assemblies.
The core applications and features of this USB Type-A Male to RJ69 (10P10C) cable with an integrated Power Link power module are as follows：
I. Application Scenarios：
I. Application Scenarios：
Equipped with a built-in DC 9V power module, it is mainly designed for devices that require "USB data transmission + additional high-voltage power supply".
1. High-power industrial barcode scanners (e.g.: long-battery-life scanners from some Symbol/Motorola series);
1. High-power industrial barcode scanners (e.g.: long-battery-life scanners from some Symbol/Motorola series);
2. Commercial portable data collectors (handheld terminals for logistics/warehousing);
3. Customized POS terminal peripherals (some cash register auxiliary devices that require extra voltage for operation).
II. Core Features：
1. Dual-Function Integration:

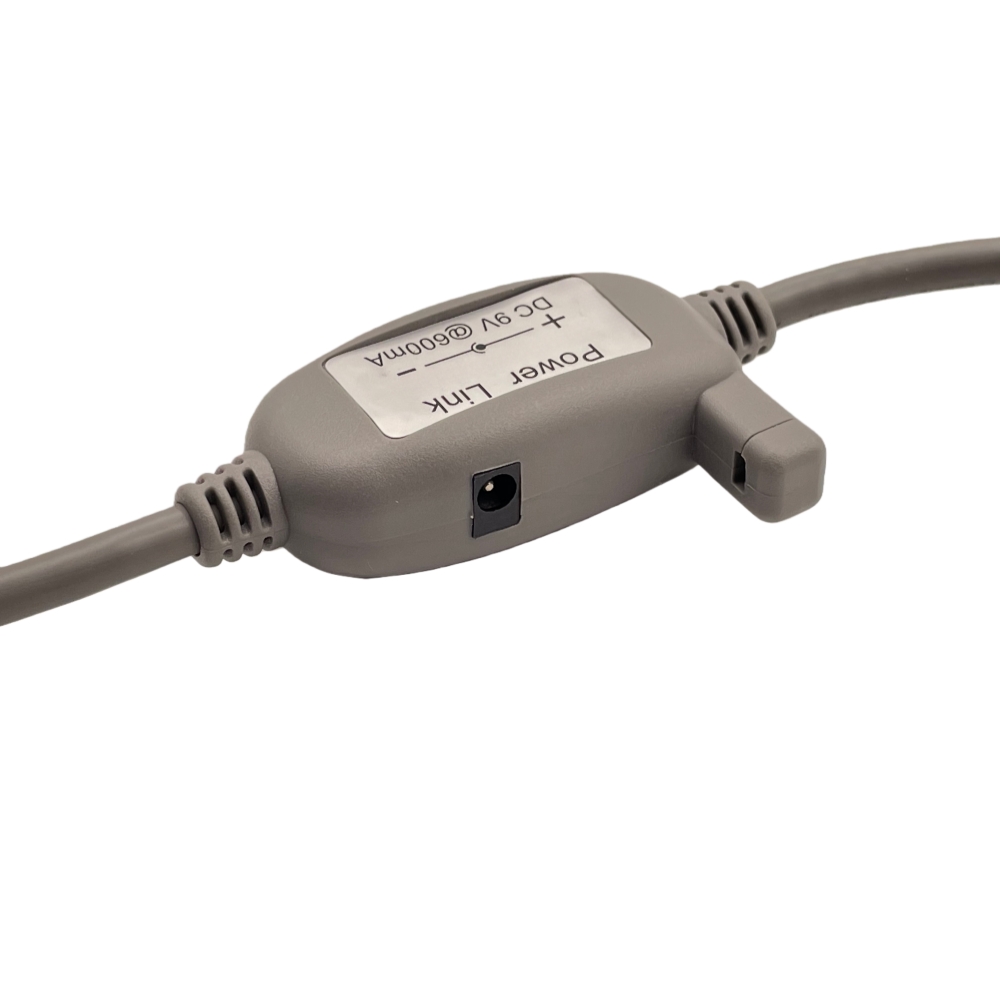

It enables both data transmission via the USB Type-A male connector and additional power supply (DC 9V@600mA) through the Power Link module, addressing the power needs of high-consumption devices that cannot be met by standard 5V USB power.
2. Interface Compatibility:
One end is a universal USB Type-A male connector (compatible with USB 2.0/1.1), and the other end is an RJ69 (10P10C) 10-pin interface, which matches the dedicated ports of specific industrial/commercial devices.
3. Convenience:
The power module is built into the cable, eliminating the need for an external power adapter and simplifying the device connection process.
4. Durability for Target Scenarios:
The cable is typically made of anti-interference shielded material and a high-toughness outer sheath, making it suitable for frequent plugging/unplugging and environmental interference in industrial/commercial settings.
Specifications:
1. Cable:?USB 2.0 Cable: #26x1P+#26x2C+al./mylar+drain wire+braid+jacket: PVC, UL2835, color: gray.

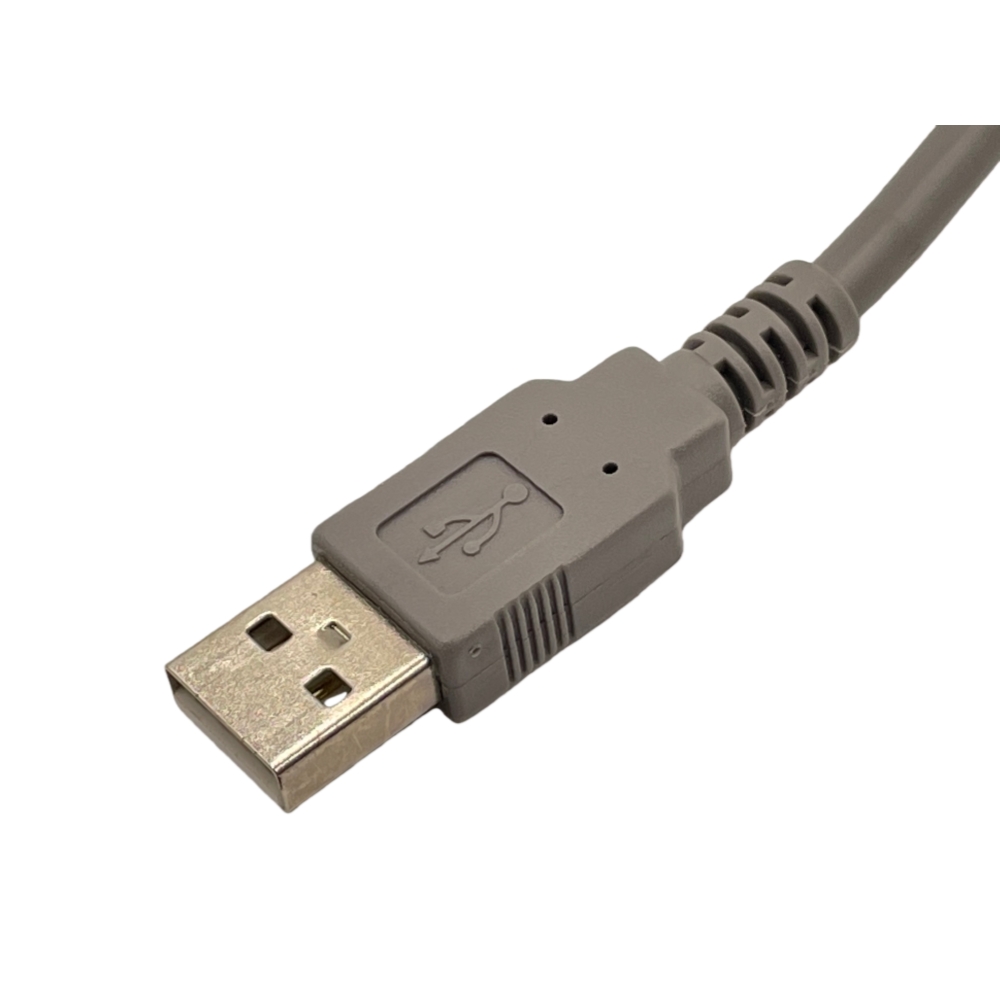

2. Connector 1: USB 2.0 A Male connector Contact: gold flash, insulator: UL94V-0, color: white. shield case(TOP & BTM): nickel plated.

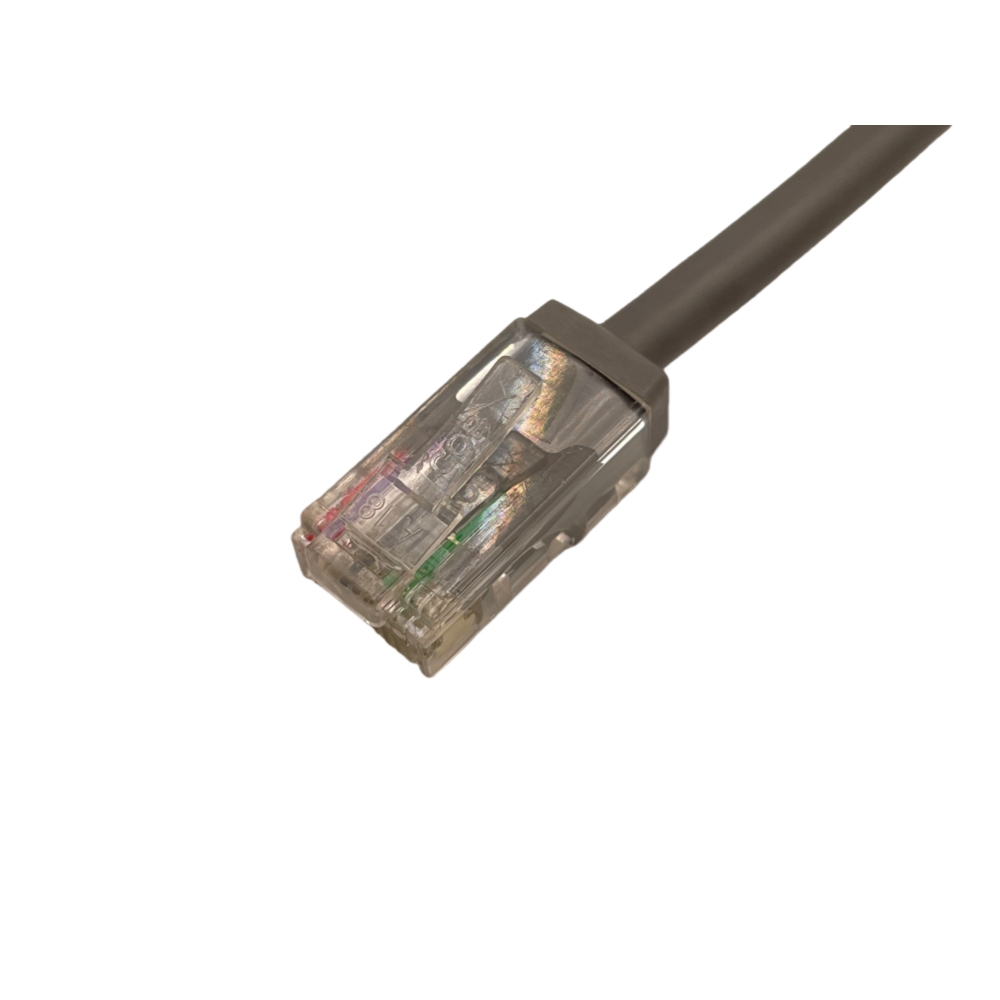

3. Connector 2: RJ-69 10P10C plug Contact: 15u" gold plated, UL94V-0, color: natural.
4. Power line PCBA: FR4, color: green, with DC jack Φ3.5xΦ1.3mm.
5. Outer molded: PVC, UL94V-0, color: gray.
6. Length customized.
UL certified cables
RoHS, REACH compliant
Specifications:
1. Cable:?USB 2.0 Cable: #26x1P+#26x2C+al./mylar+drain wire+braid+jacket: PVC, UL2835, color: gray.
2. Connector 1: USB 2.0 A Male connector Contact: gold flash, insulator: UL94V-0, color: white. shield case(TOP & BTM): nickel plated.
6. Length customized.
UL certified cables
RoHS, REACH compliant
