USB A Male to HRS 16P connector
Get Latest Price
You might also like
Basic Info
| Brand Name | CHAMAX or customized |
|---|---|
| Cable | #28x1P+#28x2C+al./mylar+drain wire+braid+jacket: PVC, O.D=Φ3.8MM, UL2835, color: black. |
| USB A Male connector | Contact: gold flash, insulator color: white, UL94V-0, shield case(TOP & BTM): nickel plated. |
| Ferrite core | ?10.5*?5.6*20.0mm, impedance: 85Ω/25MHZ 205Ω/100MHZ |
| Core molded+outer molded | PVC, shore A: 85±3, UL94V-0, color: black. |
| Compliance | RoHS/REACH, UL |
Show More
Product description
CHAMAX can customize USB cable Assemblies, OEM Custom USB cables, USB 2.0 cables,? USB 3.2 cable assemblies, USB 5Gbps cables, USB Hi speed cable assemblies.
Application Scenarios：

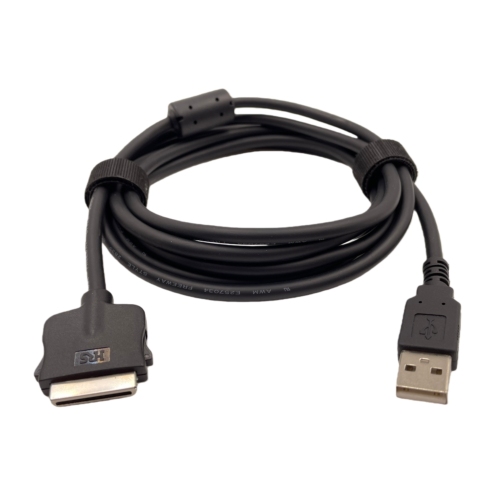

This USB A M TO HRS: 3540-16P-CV(50) cable assembly with a ferrite bead is mainly used in connection scenarios of electronic devices, that require stable data transmission and anti-interference capabilities. It is used for data/power connection of portable terminal devices, with typical scenarios including:
1. Handheld terminals (e.g. industrial PDAs、barcode scanners);
2. Portable medical devices, test and measurement instruments;
3. Debugging/data transmission of embedded devices (e.g. small controllers、IoT terminals);
4. Charging/data cables for some special consumer electronics (e.g. early portable multimedia devices).
Features:
1. Anti-interference design: The addition of a ferrite bead effectively suppresses electromagnetic interference (EMI), ensuring stable data transmission—ideal for industrial or professional equipment in complex electromagnetic environments.
2. Strong compatibility: The USB Type-A interface is widely compatible with various host devices, while the HRS 3540-16P-CV(50) interface is suitable for specific industrial or professional equipment, enabling cross-platform data connection.
3. High durability: The cable assembly is made of high-quality materials, featuring good flexibility and durability, suitable for frequent plugging/unplugging and long-term use.
4. Standardized interfaces: Designed in compliance with industry standards to ensure compatibility and interchangeability with other devices, facilitating maintenance and upgrades. This product is commonly found in fields such as industrial automation, medical equipment, and professional audio-visual devices, providing users with a reliable data transmission solution.
Specifications：
1. Cable：#28x1P+#28x2C+al./mylar+drain wire+braid+jacket: PVC, O.D=Φ3.8MM, UL2835, color: black.

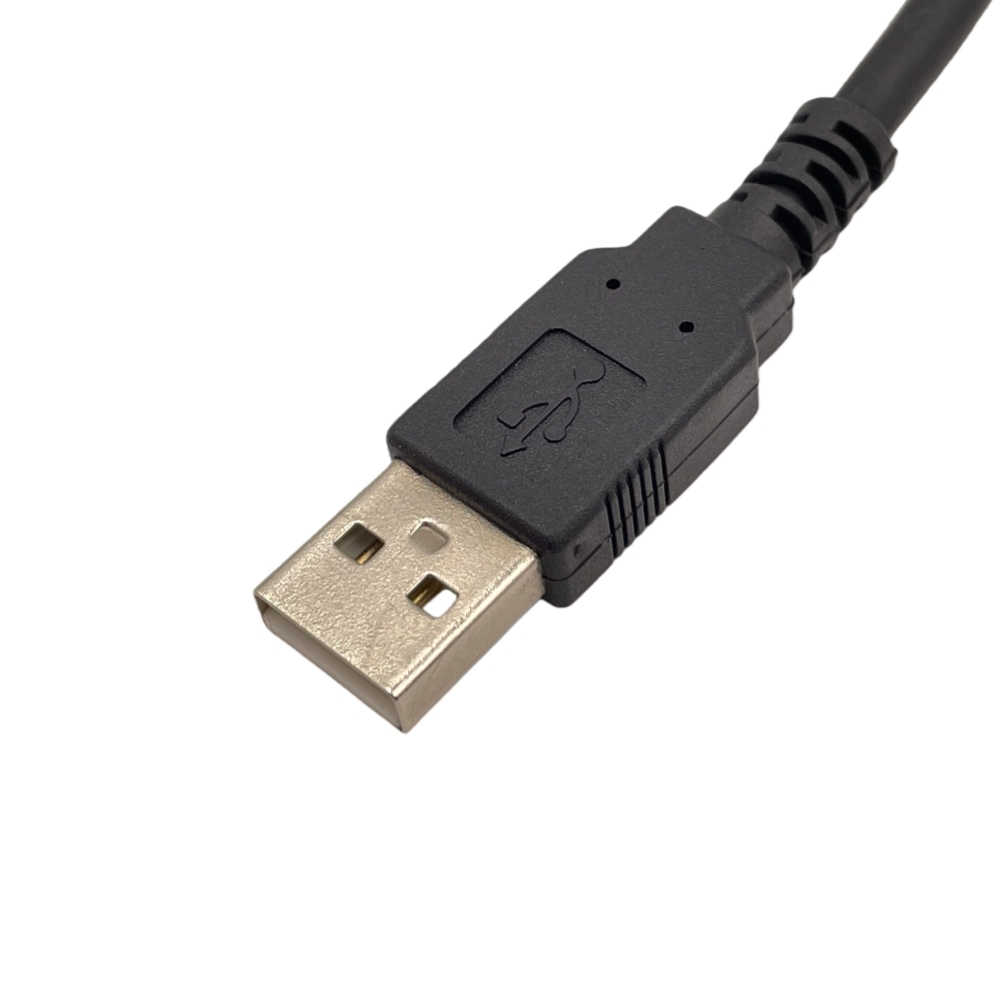

2. USB A Male connector：Contact: gold flash, insulator color: white, UL94V-0, shield case(TOP & BTM): nickel plated.

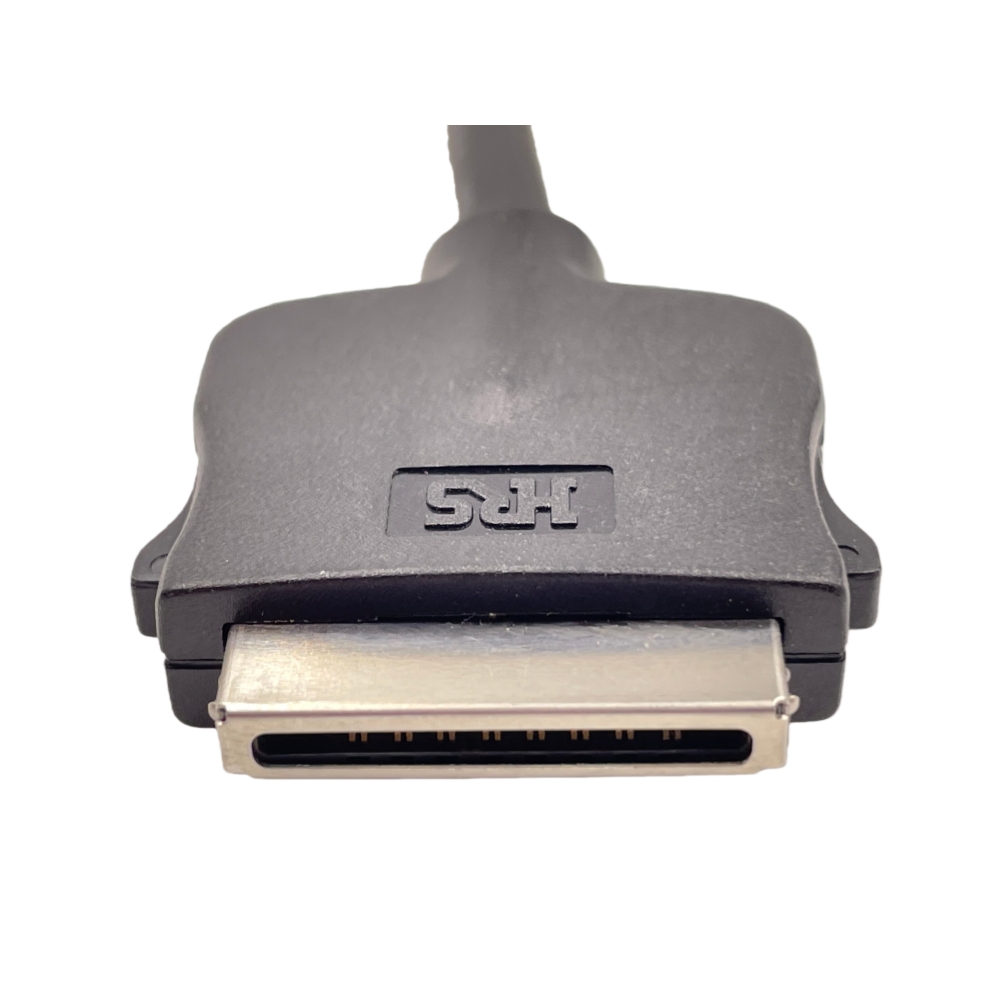

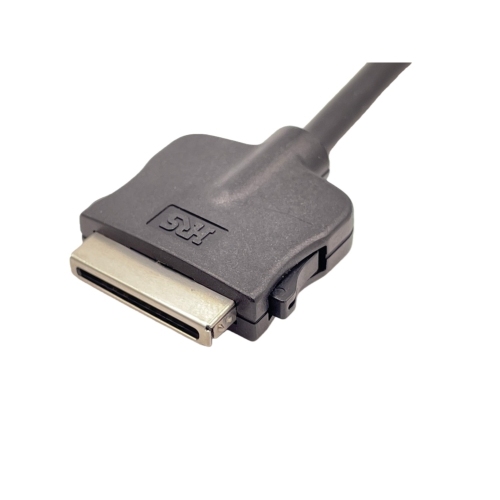

3. HRS 16P connector：Contact: copper alloy, selective gold plating 0.2um, cover(TOP & BTM): polycabonate, black, UL94V-0, body: polyamide: black, UL94V-0, shield cale: stainless steel, tapping screw: steel, black. HRS P/N: 3540-16P-CV(50) .
4. Ferrite core：?10.5*?5.6*20.0mm, impedance: 85Ω/25MHZ, 205Ω/100MHZ.
5. Core molded+outer molded: PVC, shore A: 85±3, UL94V-0, color: black. CHAMAX standard tooling for USB end molding or customized.
6. Length customized.
UL certified cables RoHS,
REACH compliant
Application Scenarios：
This USB A M TO HRS: 3540-16P-CV(50) cable assembly with a ferrite bead is mainly used in connection scenarios of electronic devices, that require stable data transmission and anti-interference capabilities. It is used for data/power connection of portable terminal devices, with typical scenarios including:
1. Handheld terminals (e.g. industrial PDAs、barcode scanners);
2. Portable medical devices, test and measurement instruments;
3. Debugging/data transmission of embedded devices (e.g. small controllers、IoT terminals);
4. Charging/data cables for some special consumer electronics (e.g. early portable multimedia devices).
Features:
1. Anti-interference design: The addition of a ferrite bead effectively suppresses electromagnetic interference (EMI), ensuring stable data transmission—ideal for industrial or professional equipment in complex electromagnetic environments.
2. Strong compatibility: The USB Type-A interface is widely compatible with various host devices, while the HRS 3540-16P-CV(50) interface is suitable for specific industrial or professional equipment, enabling cross-platform data connection.
3. High durability: The cable assembly is made of high-quality materials, featuring good flexibility and durability, suitable for frequent plugging/unplugging and long-term use.
4. Standardized interfaces: Designed in compliance with industry standards to ensure compatibility and interchangeability with other devices, facilitating maintenance and upgrades. This product is commonly found in fields such as industrial automation, medical equipment, and professional audio-visual devices, providing users with a reliable data transmission solution.
Specifications：
1. Cable：#28x1P+#28x2C+al./mylar+drain wire+braid+jacket: PVC, O.D=Φ3.8MM, UL2835, color: black.
2. USB A Male connector：Contact: gold flash, insulator color: white, UL94V-0, shield case(TOP & BTM): nickel plated.
4. Ferrite core：?10.5*?5.6*20.0mm, impedance: 85Ω/25MHZ, 205Ω/100MHZ.
5. Core molded+outer molded: PVC, shore A: 85±3, UL94V-0, color: black. CHAMAX standard tooling for USB end molding or customized.
6. Length customized.
UL certified cables RoHS,
REACH compliant
