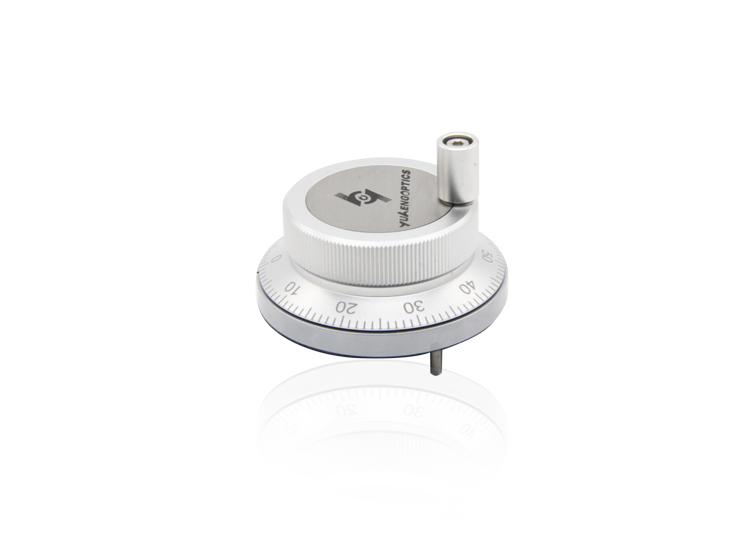

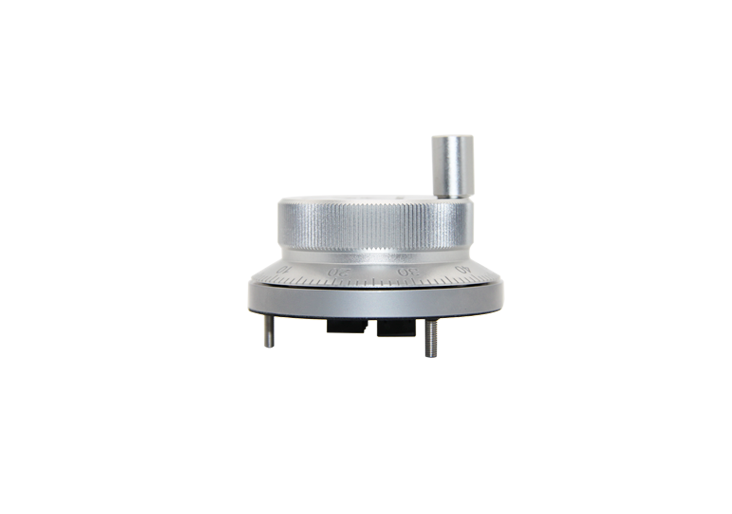

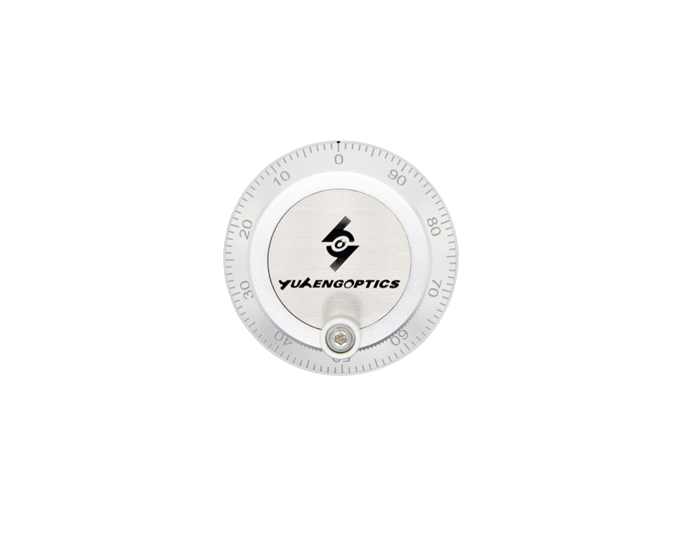

Incremental encoder high resolution
Options:
- Max. rotate speed：600
- Operating temperature :-10～+60
- Protection level：IP50
- resolution;100
- Supply voltage :5
- Response frequency / Response rate ；5
Basic Info
| Model No. | ZBG-11D-003-100 |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools |
| Feature | thin、metal shell、high insulatio |
| Model | ZBG-11D-003-100 |
| Dimension | φ60.4x41.5 |
| Connection type | Panel nut positioning |
Product description
In the process of disassembly and moving, the motor should be handled with care to prevent collision, especially the encoder part must not be knocked with a hammer, otherwise it is easy to damage the optical elements inside the encoder and the holding brake device of the motor.
| Application | CNC machine tools | |
| Feature | thin、metal shell、high insulation resistance | |
| Model | ［unit］ | ZBG-11D-003-100 |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ60.4x41.5 |
|
Shaft type |
||
|
Shaft size /aperture |
φ［mm］ | |
|
Max. rotate speed |
［r/min］ | 600 |
|
Max. shaft load Axial / Radial |
［N］ | __ |
|
Operating temperature |
［℃］ | -10～+60 |
|
Protection level |
IP50 | |
|
Connection type |
Panel nut positioning (diameter φ50.8) | |
|
resolution |
［P/r］ | 100 |
|
Electrical parameter |
||
|
Output pattern |
Line driver |
|
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 5 |
|
Optional |
Incremental encoder high resolution
Options:
- Max. rotate speed：600
- Operating temperature :-10～+60
- Protection level：IP50
- resolution;100
- Supply voltage :5
- Response frequency / Response rate ；5
