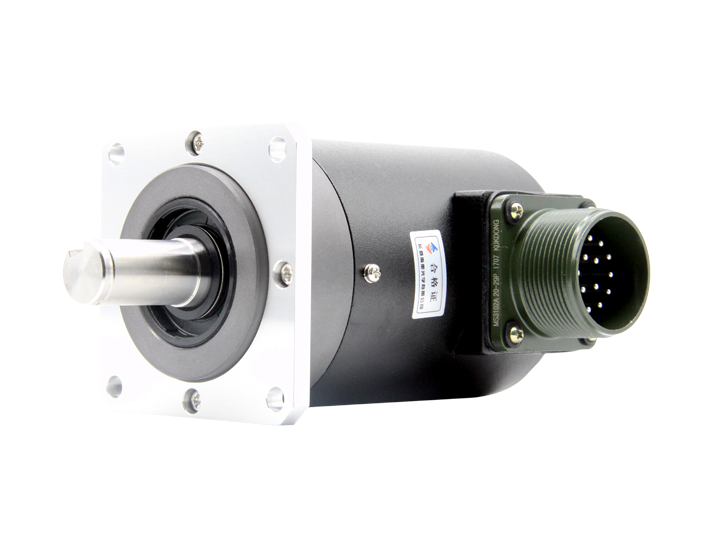

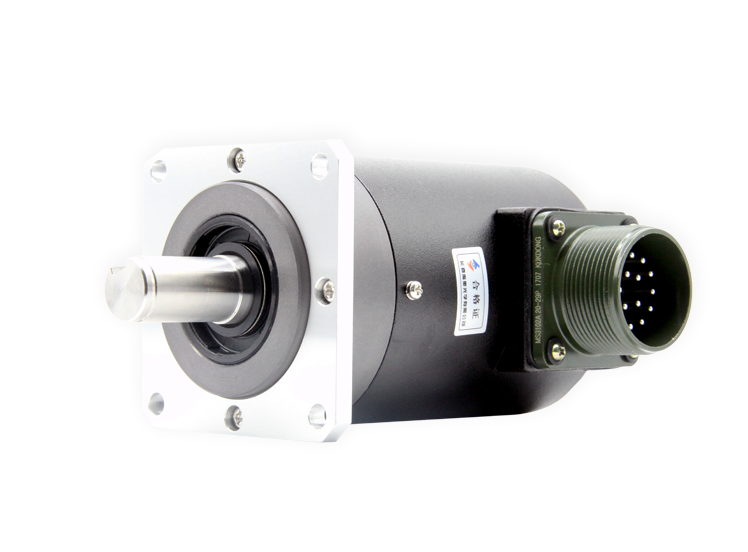

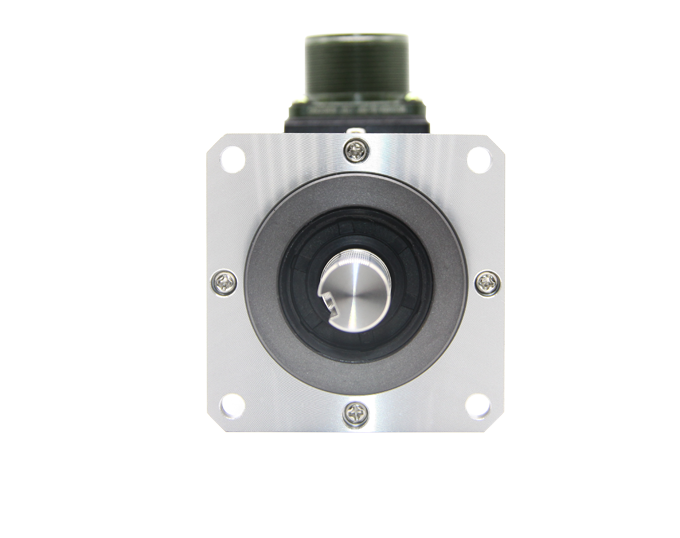

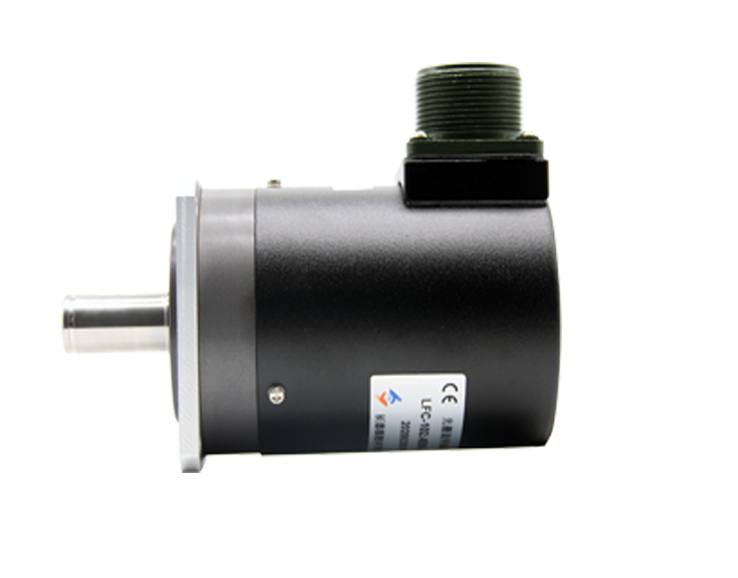

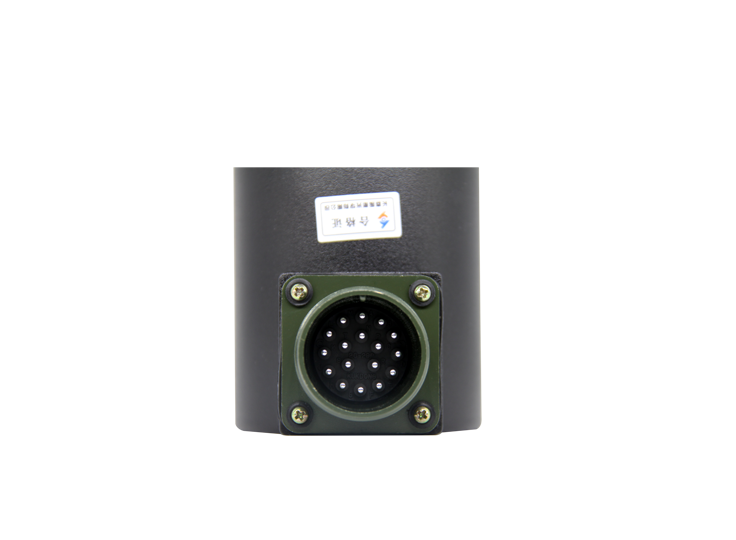

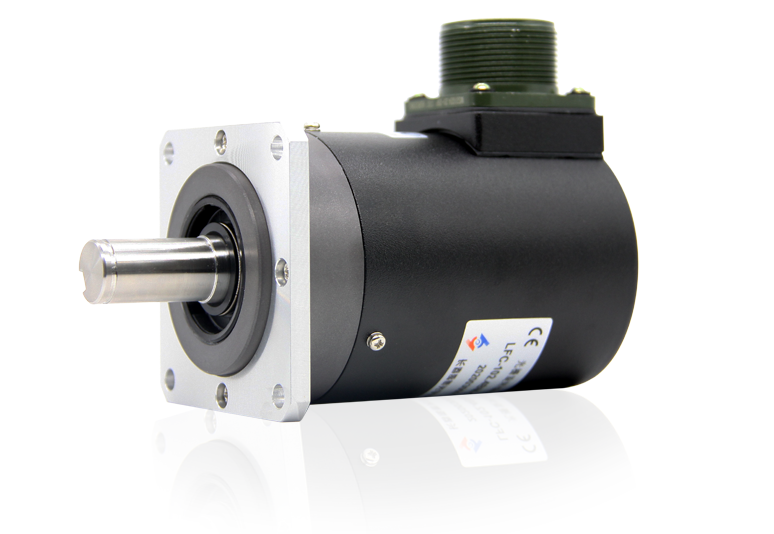

Optical wheel encoder encoder
Options:
- Max. rotate speed :［r/min］ 600
- Operating temperature :［℃］ 0～+60
- Protection level : IP50
- resolution :［P/r］ 100
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 5
Basic Info
| Model No. | LGF-12-003B-100 |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools |
| Feature | metal disk |
| Model | ［unit］ LGF-12-003B-100 |
| Dimension | ［mm］ φ80×60 |
| Connection type | Panel nut positioning (diameter φ50.8) |
Product description
The absolute encoder has the uniqueness of each position determined by the mechanical position. It does not need to be memorized, does not need to find a reference point, and does not need to be counted all the time. When it needs to know the position, when to read its position. In this way, the anti-interference characteristics of the encoder and the reliability of the data are greatly improved.
| Application | CNC machine tools | |
| Feature | metal disk | |
| Model | ［unit］ | LGF-12-003B-100 |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ80×60 |
|
Shaft type |
||
|
Shaft size /aperture |
φ［mm］ | |
|
Max. rotate speed |
［r/min］ | 600 |
|
Max. shaft load Axial / Radial |
［N］ | __ |
|
Operating temperature |
［℃］ | 0～+60 |
|
Protection level |
IP50 | |
|
Connection type |
Panel nut positioning (diameter φ50.8) | |
|
resolution |
［P/r］ | 100 |
|
Electrical parameter |
||
|
Output pattern |
Line driver |
|
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 5 |
|
Optional |
Optical wheel encoder encoder
Options:
- Max. rotate speed :［r/min］ 600
- Operating temperature :［℃］ 0～+60
- Protection level : IP50
- resolution :［P/r］ 100
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 5
