Generally, the encoder should be monitored on line. If the encoder can be removed, it is better to turn the encoder by hand after power on. If the servo motor can move according to the encoder value change, it is proved to be good. If the encoder is turned by hand after power on, the value does not change or changes irregularly, it is bad. But beware of speeding.

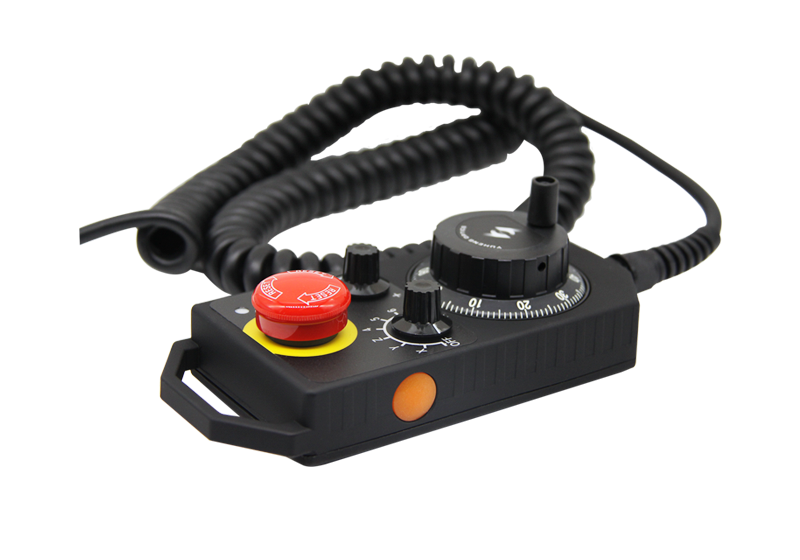

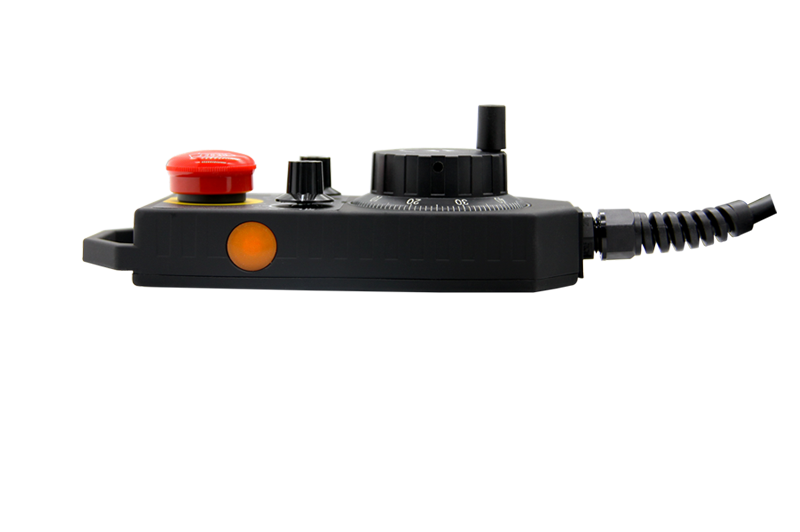

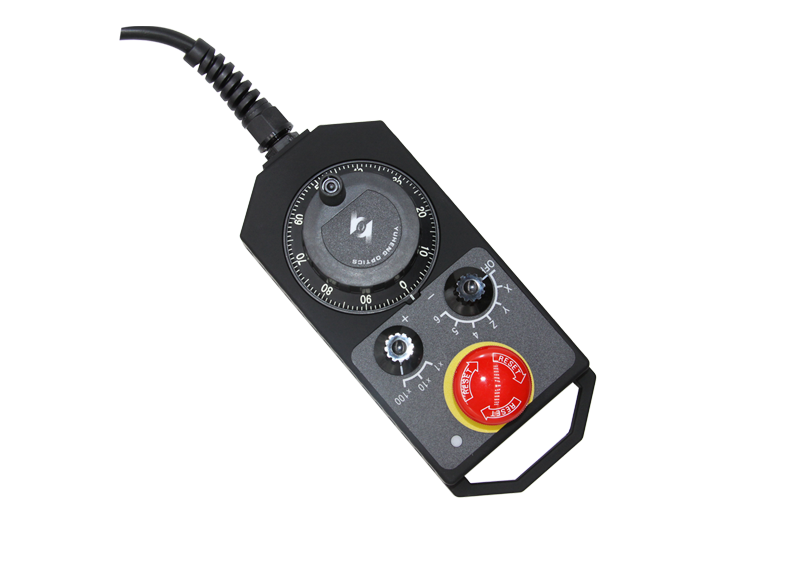

Application		CNC machine tools
Feature		multi-axis optional, including other functions such as magnification emergency stop
Model	［unit］	ZSJ-001-100
Mechanical parameter
Dimension	［mm］	φ74x162
Shaft type		6
Shaft size /aperture	φ［mm］	3
Max. rotate speed	［r/min］	600
Max. shaft load Axial / Radial	［N］	1
Operating temperature	［℃］	-10～+60
Protection level		IP67
Connection type		1
resolution	［P/r］	100
Electrical parameter
Output pattern		Voltage
Supply voltage	DC［V］	5～15
Response frequency / Response rate	［KHz］	5
Optional
