Encoder is a device that converts angular displacement or linear displacement into electrical signal. According to the readout mode, encoders can be divided into two types: contact type and non-contact type. The contact type uses brush output, and one brush contacts conductive area or insulating area to indicate whether the code status is "1" or "0"; the non-contact receiving sensitive element is photosensitive element or magnetic sensitive element, and the light transmission area and non light transmission area are used to indicate when the photosensitive element is used Indicates whether the status of the code is "1" or "0"

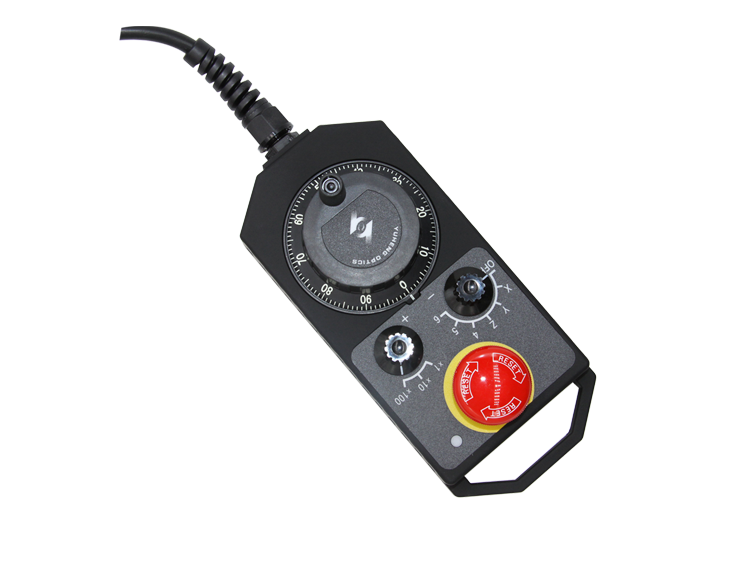

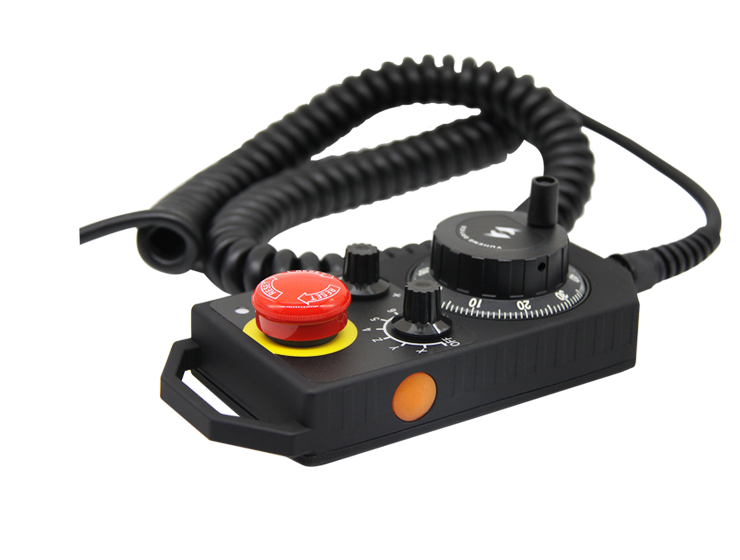

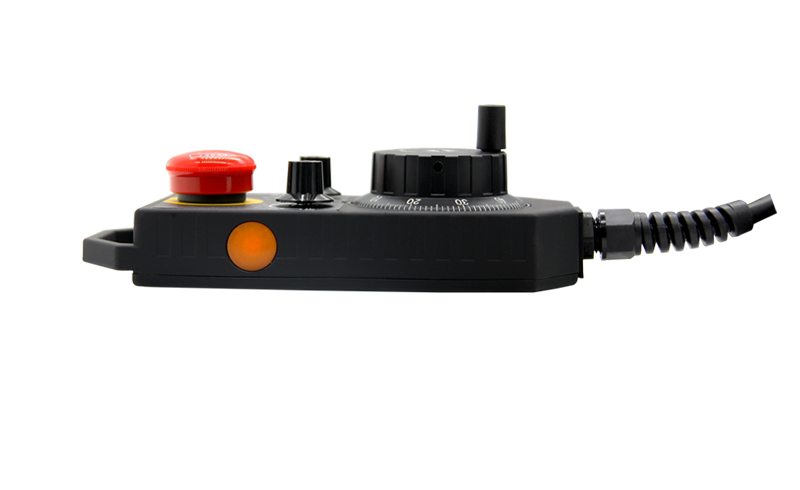

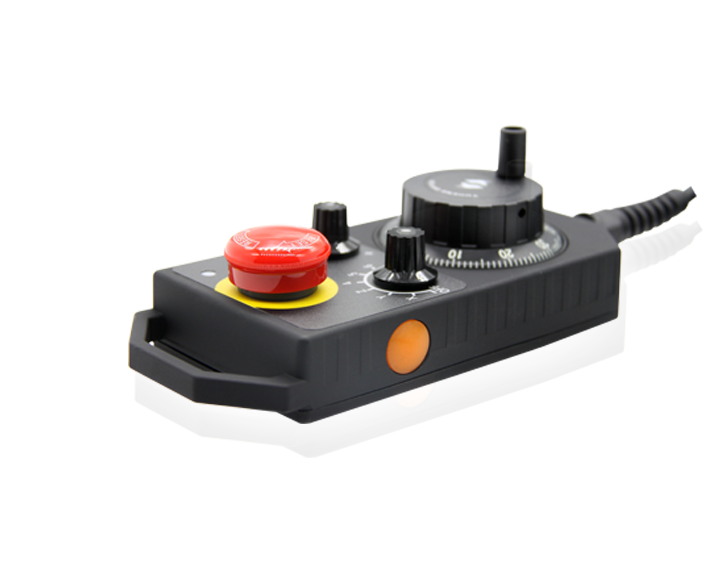

Application		CNC machine tools
Feature		multi-axis optional, including other functions such as magnification emergency stop
Model	［unit］	ZSJ-1-001-100
Mechanical parameter
Dimension	［mm］	φ74x162
Shaft type		6
Shaft size /aperture	φ［mm］	3
Max. rotate speed	［r/min］	600
Max. shaft load Axial / Radial	［N］	1
Operating temperature	［℃］	-10～+60
Protection level		IP67
Connection type		1
resolution	［P/r］	100
Electrical parameter
Output pattern		Voltage
Supply voltage	DC［V］	5～15
Response frequency / Response rate	［KHz］	5
Optional
