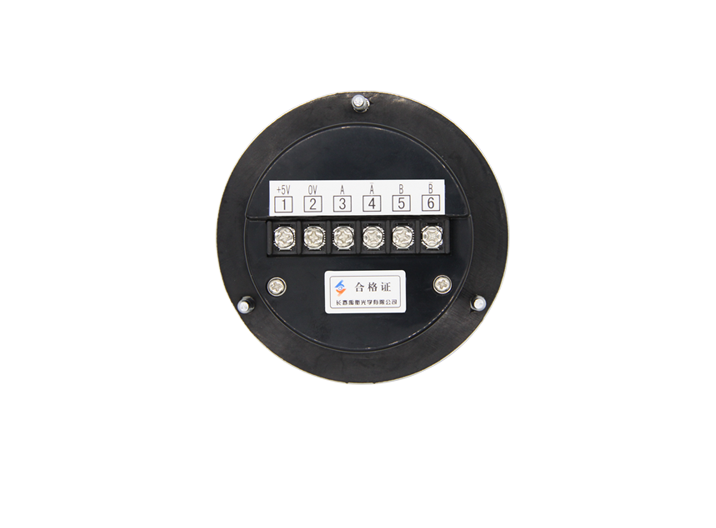

Motor shaft encoder encoder
Options:
- Max. rotate speed ：［r/min］ 600
- Operating temperature ：［℃］ 0～+60
- resolution ：［P/r］ 100
- Supply voltage ：DC［V］ 5
- Response frequency / Response rate ：［KHz］ 5
Basic Info
| Model No. | LGF-12B-003-100 |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools |
| Feature | metal disk |
| Model | ［unit］ LGF-12B-003-100 |
| Dimension | ［mm］ φ80×60 |
| Protection level | IP50 |
Product description
Please pay attention to the resolution: that is, the number of pulses output per revolution when the encoder is working, whether it meets the design and use accuracy requirements.
Please pay attention to the electrical interface: the common encoder output methods include push-pull output (F type HTL format), voltage output (E), open collector (C, common C is NPN type tube output, C2 is PNP type tube output), long-line driver Output. Its output mode should match the interface circuit of its control system.
| Application | CNC machine tools | |
| Feature | metal disk | |
| Model | ［unit］ | LGF-12B-003-100 |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ80×60 |
|
Shaft type |
||
|
Shaft size /aperture |
φ［mm］ | |
|
Max. rotate speed |
［r/min］ | 600 |
|
Max. shaft load Axial / Radial |
［N］ | __ |
|
Operating temperature |
［℃］ | 0～+60 |
|
Protection level |
IP50 | |
|
Connection type |
Panel nut positioning (diameter φ50.8) | |
|
resolution |
［P/r］ | 100 |
|
Electrical parameter |
||
|
Output pattern |
Line driver |
|
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 5 |
|
Optional |
Motor shaft encoder encoder
Options:
- Max. rotate speed ：［r/min］ 600
- Operating temperature ：［℃］ 0～+60
- resolution ：［P/r］ 100
- Supply voltage ：DC［V］ 5
- Response frequency / Response rate ：［KHz］ 5
