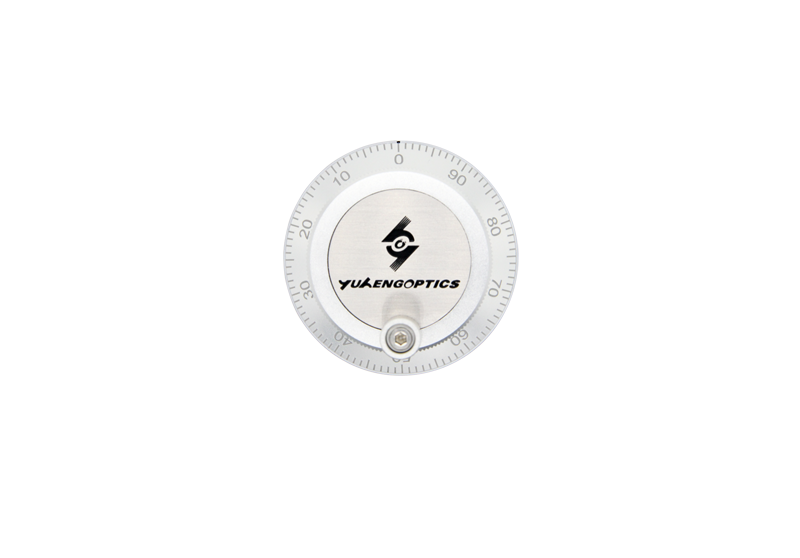

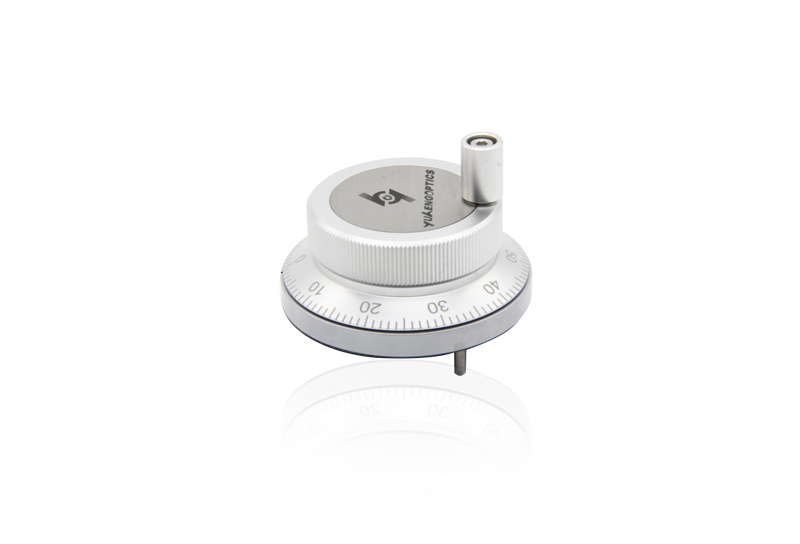

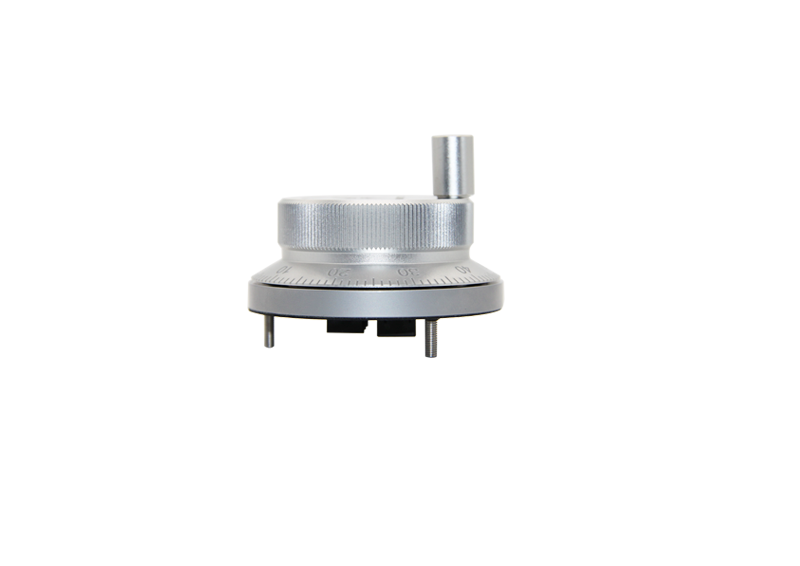

Incremental encoder module encoder
Options:
- Operating temperature: ［℃］ -10～+60
- Protection level : IP50
- resolution: ［P/r］ 100
- Supply voltage :DC［V］ 5～15
- Response frequency / Response rate :［KHz］ 5
Basic Info
| Model No. | ZBG-11-001-100 |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools |
| Feature | thin、metal shell、high insulation resistance |
| Model | ［unit］ ZBG-11-001-100 |
| Dimension | ［mm］ φ60.4x41.5 |
| Max. rotate speed | ［r/min］ 600 |
Product description
When installing the support disk, make sure that the support disk surface is parallel to the bottom surface of the encoder, and pay attention to its spacing and tolerance range. Otherwise, it is easy to damage the support disc or encoder shaft during rotation.
| Application | CNC machine tools | |
| Feature | thin、metal shell、high insulation resistance | |
| Model | ［unit］ | ZBG-11-001-100 |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ60.4x41.5 |
|
Shaft type |
||
|
Shaft size /aperture |
φ［mm］ | |
|
Max. rotate speed |
［r/min］ | 600 |
|
Max. shaft load Axial / Radial |
［N］ | __ |
|
Operating temperature |
［℃］ | -10～+60 |
|
Protection level |
IP50 | |
|
Connection type |
Panel nut positioning (diameter φ50.8) | |
|
resolution |
［P/r］ | 100 |
|
Electrical parameter |
||
|
Output pattern |
Voltage | |
|
Supply voltage |
DC［V］ | 5～15 |
| Response frequency / Response rate | ［KHz］ | 5 |
|
Optional |
Incremental encoder module encoder
Options:
- Operating temperature: ［℃］ -10～+60
- Protection level : IP50
- resolution: ［P/r］ 100
- Supply voltage :DC［V］ 5～15
- Response frequency / Response rate :［KHz］ 5
