As can be seen from the above adjustment, since the encoder shaft and the motor shaft can be connected at any angle, the encoder zero position and the mechanical position of the motor are only relative positions. Only when the encoder shaft and the motor shaft are fixed, the actual zero position of the encoder will be fixed. If the position of the movable base is determined, the column head screw between the shafts will be fixed The position of the nail is fixed.

Application		CNC machine tools
Feature		thin,plastic shell、high insulation resistance

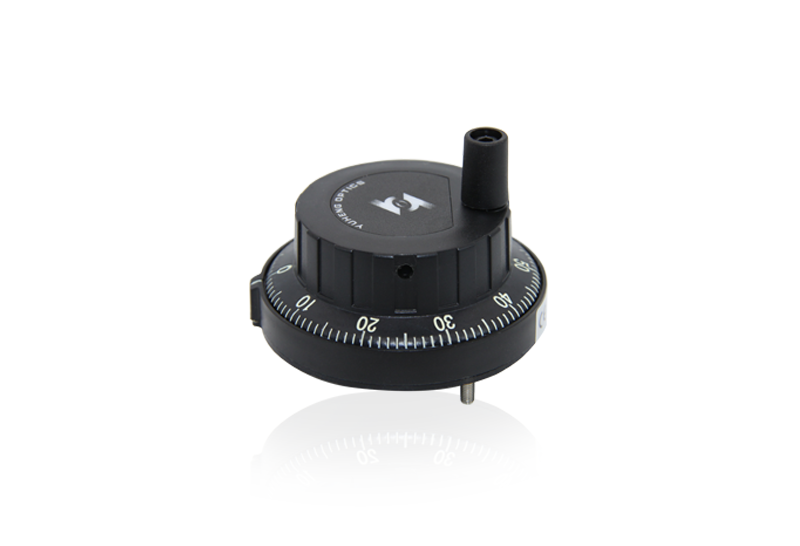

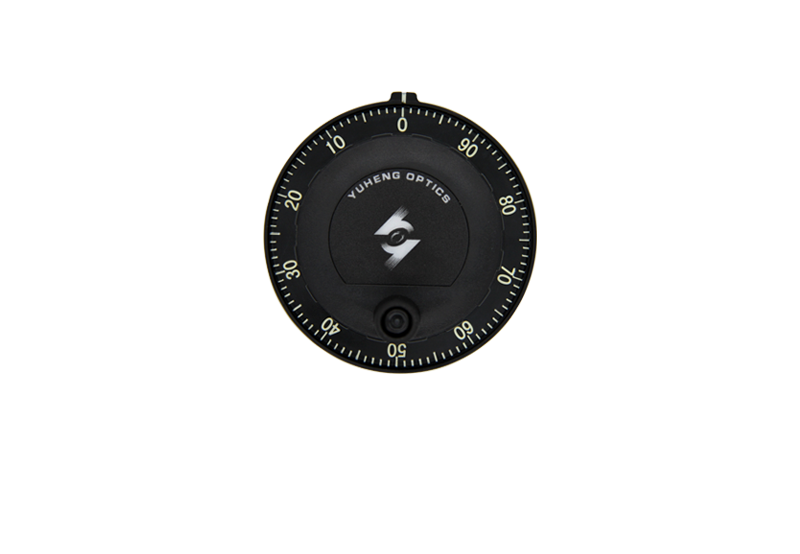

Model	［unit］	ZBG-7-001-100
Mechanical parameter
Dimension	［mm］	φ61×49
Shaft type
Shaft size /aperture	φ［mm］
Max. rotate speed	［r/min］	600
Max. shaft load Axial / Radial	［N］	__
Operating temperature	［℃］	-10～+60
Protection level		IP50
Connection type		Panel nut positioning (diameter φ50.8)
resolution	［P/r］	100
Electrical parameter
Output pattern		Voltage
Supply voltage	DC［V］	5～15
Response frequency / Response rate	［KHz］	5
Optional
